CARILLO LENS
Modular „all-in-one“ continuous-row lighting system with integrated current-conducting profile.
Future-proof system thanks to up to 12-pole wiring of the support profile. Power supply, light control and connection to an emergency system are thus realised in the simplest way possible.
Thanks to our intelligent CLICK SYSTEM, seamless light tracks can be installed in a very short time and can always be readapted to spatial changes.
Highly efficient and interchangeable light inserts with different beam characteristics offer the right solution for almost any application.
Datasheet
Catalogue page
Light distribution
Mounting instructions
Product images
Quickinfo
CARILLO LENS Family
25-75W
4.100-12.000lm
Luminaire
Deckenmontage
Aufbau, Abgehängt
Stahl
Weiß
IP40
IK06
5 Jahre Garantie
LED
3000K, 4000K
CRI>80
Initial MacAdam 3 SDCM
60.000 L80
Light distribution
SPOT 30°, MEDIUM 60°, WIDE 90°
Electrical
ON-OFF schaltbar, DALI dim, Notlicht 3h 10W
Light distribution

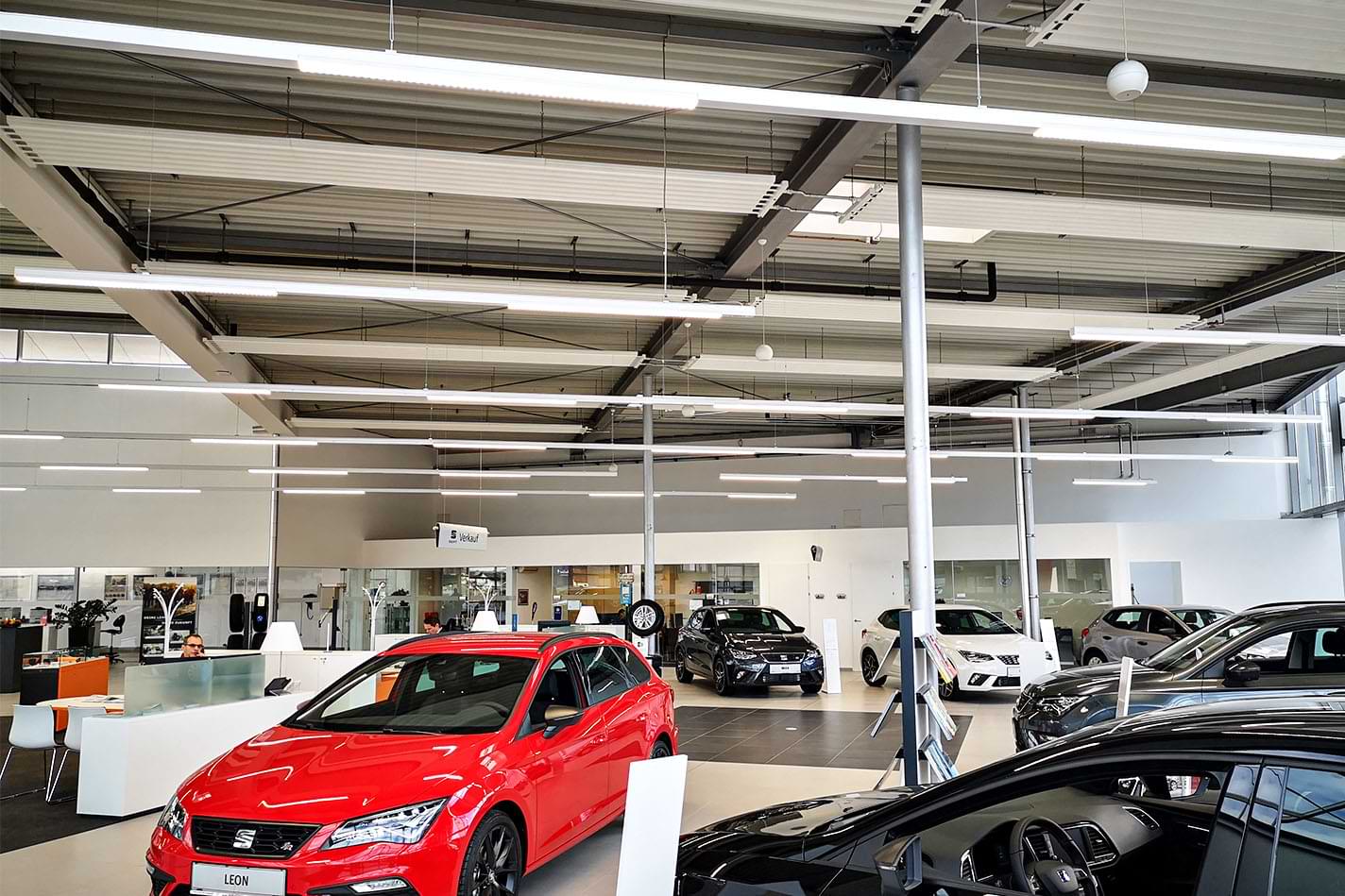

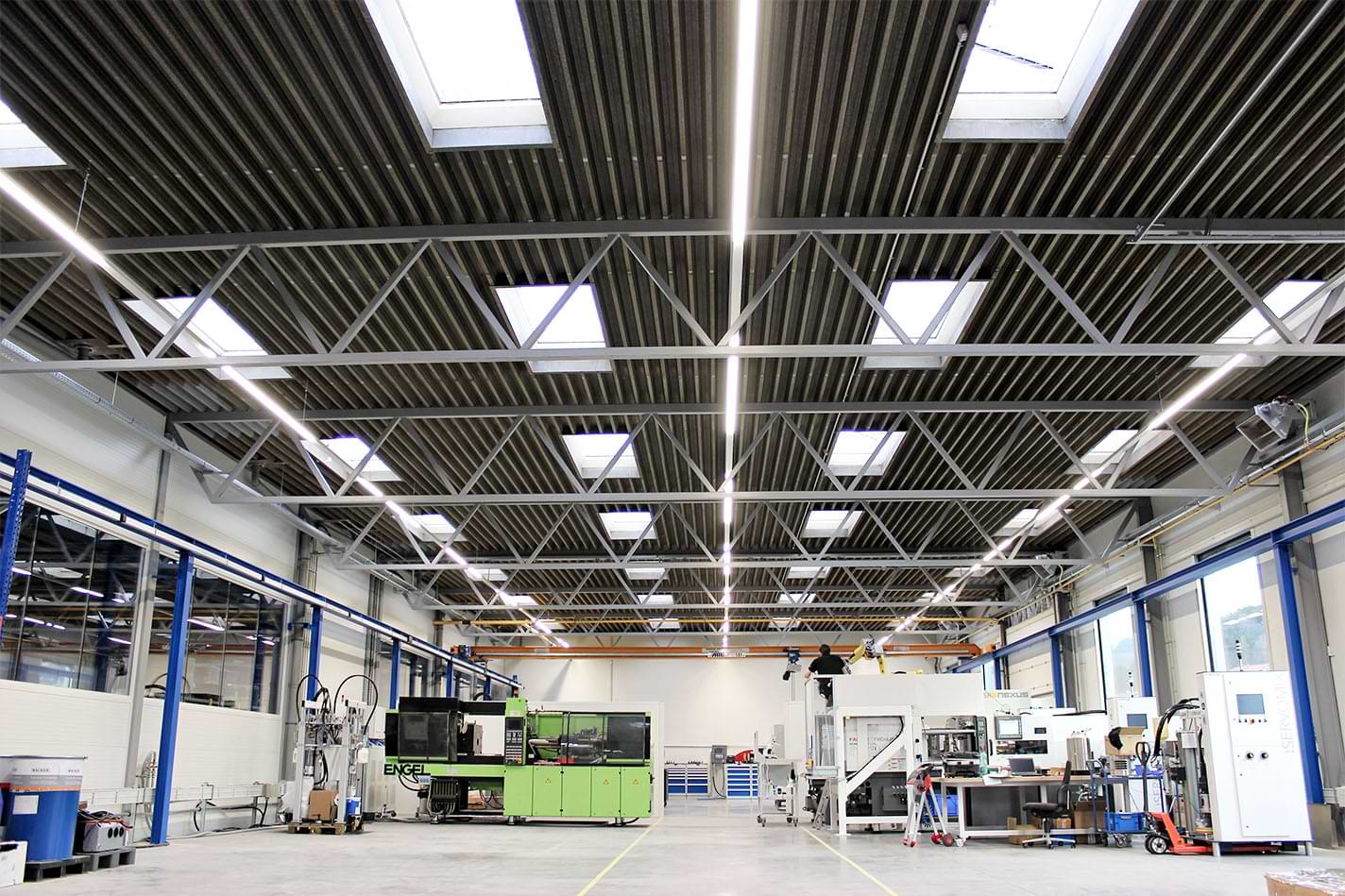

In use
