MID2
The MID2 street luminaire impresses with its clear, straightforward design and is the perfect solution for professional lighting of all types of traffic routes. Its housing, made of grey powder-coated die-cast aluminum, not only ensures high durability but also presents an aesthetic appearance that seamlessly integrates into various environments. Equipped with highly efficient LED technology and an innovative lens system, the luminaire delivers uniform and optimal light distribution.
The cover made of transparent, tempered glass protects the luminaire from external influences, ensuring a long service life. The luminaire is extremely weather-resistant and robust.
Thanks to stainless steel clamping screws, installation is quick and hassle-free. Adapters for wall and pole mounting are also available upon request.
Datasheet
Catalogue page
Light distribution
Mounting instructions
Product images
Quickinfo
MID2 Family
MID2-S, 19W
MID2-S, 39W
MID2-S, 65W
MID2-M, 74W
MID2-M, 101W
MID2-M, 112W
2.600lm
5.100lm
8.400lm
10.300lm
13.800lm
14.600lm
Luminaire
Street luminaire
Aluminium, Glass
Grey RAL 9007
IP66
IK09
5 year warranty
LED
2200K, 2700K, 3000K, 4000K
CRI>70, optional CRI>80
Initial MacAdam 4 SDCM
100.000h L80
Light distribution
asymmetric street01
asymmetric wide01
streetwalk left, right
Electrical
ON-OFF switchable, DALI dim, automatic DIM profile
Dimensions
Light distribution

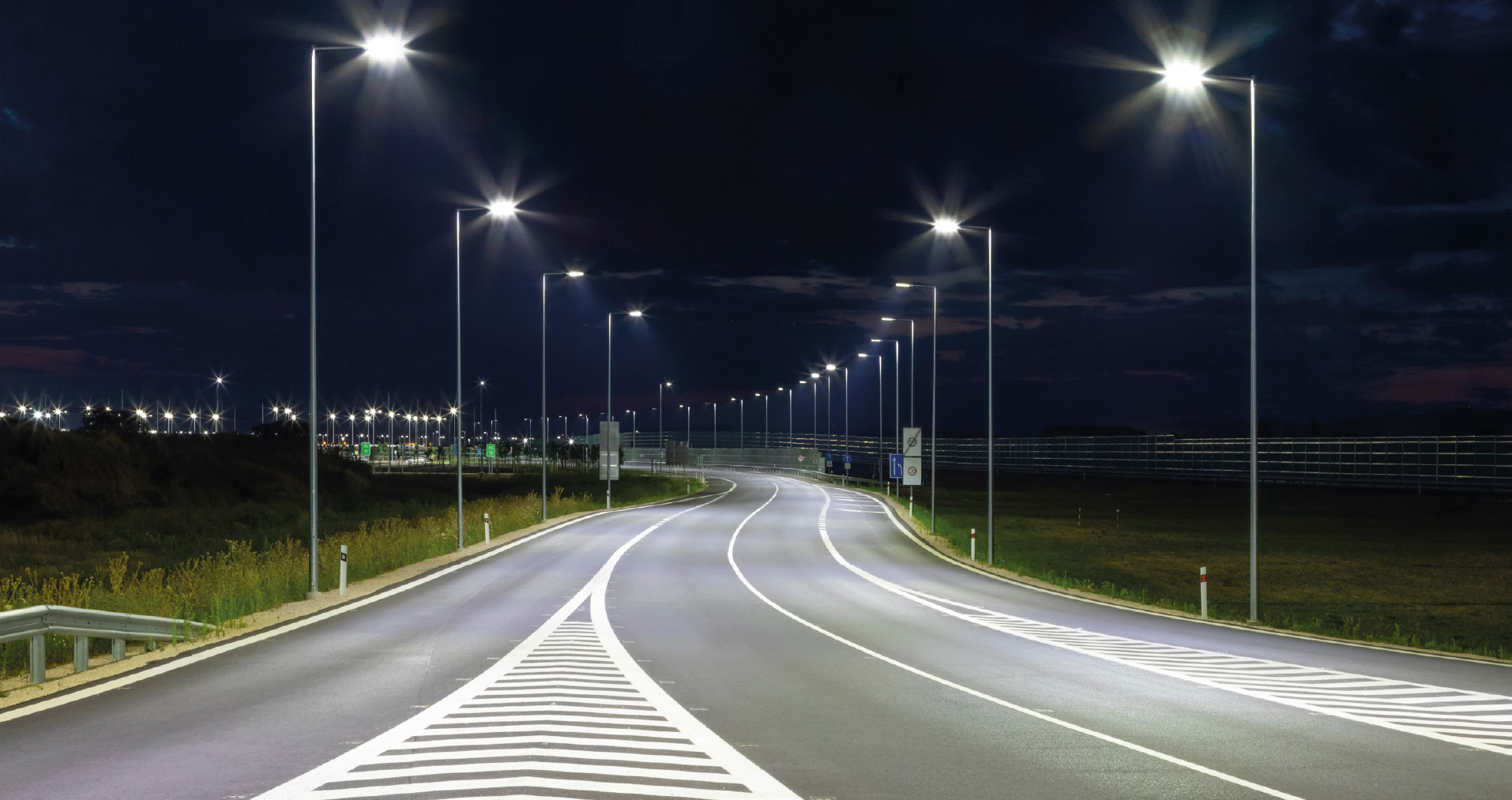

In use
